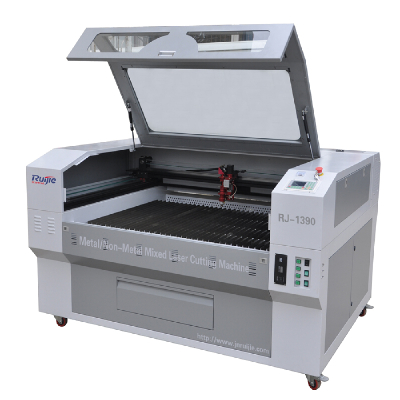

- Size: 3.62
- Place of Origin: Jinan,China
- Brand Name: RUIJIE
- Model Number: 1390
- Weight: 430.000 kg
Features:
◆Square rail and ball screw transmission enable the machine high precision and stable performance.
◆Professional industrial circulation cooling systems with automatic alarm system.Optical components adopt imported U.S. 26 mirrors and ZNSE focus lens for high quality cutting effect.
◆Constant optical structure to fix the laser path ensures stable beam transmission.
◆Following focus system realized dynamics focus continuous cutting on material of different thickness.
◆Japan YASKAWA and PANASONIC servo motors alternatives.
Applications:
◆It is applicable to stainless steel, carbon steel, acrylic, wood and other metal and non-metal sheet materials.
◆It is applicable to metal sheets, metal and non-metal processing enterprises such as medium thickness sheet metal processing
◆factory and advertising company.
◆sheet metal structure, high and low voltage electrical cabinet making, hardware, tools, advertising signs, metal crafts; decorating,
automotive, petrochemical, medical, mechanical parts, electrical meter parts, saw blades, spring-chip and other industries.
◆Non-metal Industry:
* Leather processing industry: leather, fabric carved hollow.
* Arts and crafts industry: paper cutting, wood, bamboo products, leather, shell, ivory and other materials’ engraving and cutting.
* Advertising industry: acrylic engraving and cutting, cutting and engraving of double-color plate and other advertising material.
* Packaging industry: printed rubber plate engraving and cutting, plywood cutting and laser cutter template cutting.
* Decoration industry: electrical and electronic industry materials engraving and cutting.
Parameters:
Model | RJ1390 |
Working Size | 1300x900mm |
Laser Type | CO2 Sealed Laser Tube, wavelength 10.6μm (In accordance with GB11748-89 standard) (Optional frequency metal tube) |
Laser Power | 150W, 180W, 200W, GSI280W |
Cooling System | Industrial Water cooling system |
Cutting Speed | 0-600mm/s (the speed is varied due different thickness of materials) |
Energy Adjustment | 0-100% stepless control, inside software 0-100%adjust |
Control System | Digital Offline Control System |
Drive System | Servo Motor, high precision ball screw |
Working Voltage | AC220V 50/60Hz |
Position Accuracy | ±0.05mm |
Minimum Letter Size | Chinese:3mm English:2mm |
Whole Machine Power | ≤2500w |
Working Environment | Temperature:0-45C,humidity:5%-95%non-condensate |
Supported Format | PLT,DST,DXF,BMP,AI, support AutoCAD, CorelDraw output directly |
