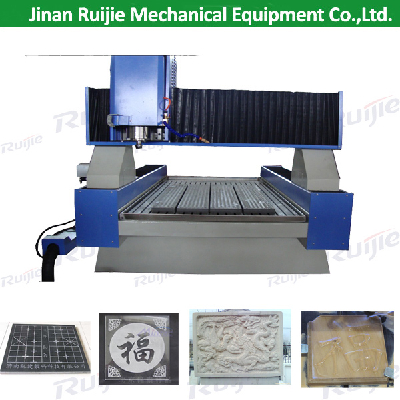

Stone CNC Router Machine
1. Features:
* Profiled steel welded lathe bed, stabilizing treated under high
temperature ensures minimum distortion, excellent rigidity and
vigorous strength.
* Configured with water tank and automatic cooling water supply
system.
* Overall dust-proof and water-proof design protects all moving
2.Techanical parameters:
Working area: 1200mm*2400mm*300mm
Engraving depth: 150mm
Max engraving speed: 3000mm/min
Reposition accuracy: less than0.05/300mm
Working dictate: G code
Spinde: 3 KW
XYZ guide rail: square linear rail
Transmisson: XY precise rack gear Z ball screw3.
Model Name | RJ6090 |
Working Area(X*Y*Z) | 600x 900x 300mm |
Engraving depth | 150mm |
Max engraving speed | 3000mm/min |
Traveling Accuracy | <0.05/300min |
Command Language | G Code |
Spindle | 3.0kw Water Cooling |
Converter | 3.0kw |
Driver | Fuling |
Control System | DSP |
Tool diameter | φ3.175, φ6, φ12.7 |
XYZ Guide Rails | Linear Square Rail |
Transmission | Rack Gear of X.Y axis, Ball Screw of Z axis |
Drain system | Water tank |
water cooling system | Water pump |
Dust system | Dust-proof |
Supported Format and Software | PLT,DST,DXF,BMP, AI ; Support AutoCAD, Corel Draw output directly |
Warranty | one year |
Optional Equipment | Multi spindles |
DSP handle |
