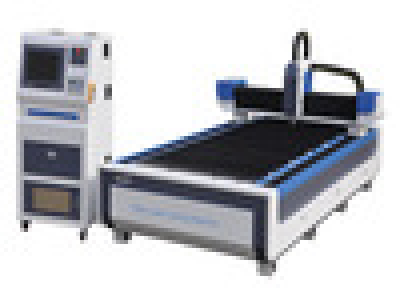

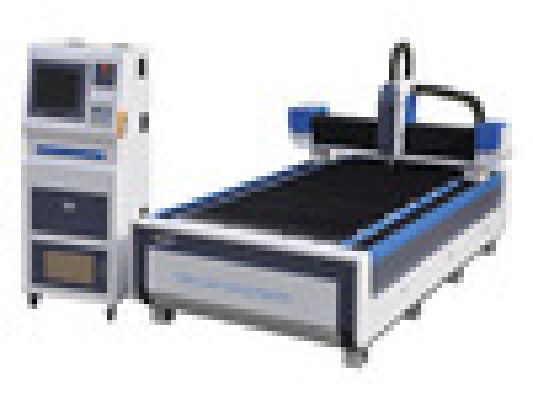

Fiber Laser Cutting Machine
Brief Introduction:
International advanced technology of SPI company's high-power fiber laser generator,high-precision rack and pinion,imported high precision linear ralis and efficient transmission bu import CNC systerm,our fiber laser cutting machine is collection of high precision CNC fiber laser cutting machine,mainly used for cutting and forming of carbon steel plate.stainless steel,aluminum and other metal materials,wiith high-speed characteristics of precision,high effeciency,it is preferred choice of the metal processing industry.
Machine advantages:
1.Excellent beam quanlity:smaller focused spot makes more efficient work and cutting quality.
2.High cutting speed:its speed is twice of the same CO2 tube laser cutting machine.
3.High stability;the world's top fiber laser generator makes stable performance,and the key components of the machine owns the life up to 100,000 hours.
4.High electro-optical conversion efficiency:fiber laser is three times higher than CO2 laser and cutting machine.
5.Low use-cost:whole machine consume less energy,only 20%-30% of traditional CO2 laser machine.
6.Low using cost:no laser working gas,it is by fiber optic transmission,without lens reflecting,can save a lot of maintenance costs.
7.Smart operation and easy maintenance:optical fiber transmission,no need to adjust the optical path.
8.Super flexible light guiding effect:compact structure,satisfies flexible processing requirements.
Suitable materials
Mainly suitable for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet and other sheet metal
Industrial applications:
Applied in a variety of industries, such as medical microelectronics, spectacle frame, metro or auto accessories, mechanical parts, arts and crafts, hardware, advertising, etc
- Size: 18
- Place of Origin: CHINA
- Brand Name: RUIJIE
- Model Number: RJ1530
- Weight: 3000.000 kg
Parameters:
Model | RJ1530 |
Working Size | 1500x3000mm |
Laser Type | Imported Optical Fiber Laser Generator |
Laser Wavelength | 1070 nm |
Laser Output Power | 300W |
Cutting Thickness | 0.2-3mm |
Max Cutting Speed | 10000mm/min |
Position Accuracy | <±0.04mm |
Minimum Line width | <0.12mm |
Cooling System | Air Cooling |
Driving System | Japan YASKAWA Servo motor and drivers |
Working Voltage | AC220V/110V±10% 50Hz/60Hz |
Transmission | Imported ball screw |
