- Size: 7.37
- Place of Origin: China
- Brand Name: RUIJIE
- Model Number: 1318
- Weight: 810.000 kg
Features:
* Integrally cast lathe bed, solid and stable, high rigidity and long service time.
* Imported high accuracy ball screw ensures more stable movement and high accuracy.
* Aluminum decorated appearance, beautiful shape and magnificent looking.
* Water-cooling brushless spindle, low noise, vigorous cutting strength and long time mass processing.
* Three axes adopt dust-proof, ensuring the machine work with long service time.
* High performance subdivision driver ensures fast speed and high accuracy.
* Adopt selected electrical parts with good design to minimize the breakdown rate.
* Processing time estimation and continuation at stop point in case of power failure or on the following day.
* Supports TYPE3/ ArtCAM/ Wentai and several kinds of CAD/CAM design softwares.
Technical Parameters:

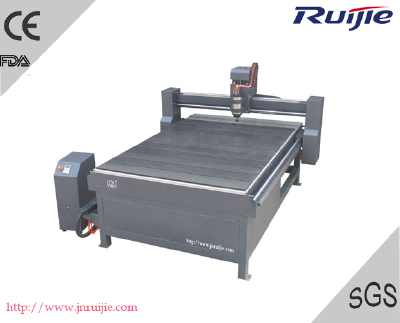

Model Name | RJ1318 |
| Working Area(X*Y*Z) | 1300x 1800mm |
| Spindle Power | 1.5KW |
| Lathe Bed | Cast |
| Lathe Table | PVC |
| XYZ guide rail | Round Rail |
| XYZ transmission | Ball Screw |
| Spindle | changzhou |
| Inverter | 1.5kw |
| Driver | chuangwei |
| Operation Software | NC studio |
| Typeset Software | Artcut (English) |
| Processing accuracy | <0.05mm/300mm |
| Reposition Accuracy | 0.02mm |
| Max Moving Speed | 6000mm/min |
| Max Engraving Speed | 4000mm/min |
| Tool Diameter | φ3.175mm, φ4mm, φ6mm |
| Working Voltage | AC110V/220V, 50HZ/60HZ |
