- Size: 15.24
- Place of Origin: China
- Brand Name: RUIJIE
- Model Number: 2040
- Weight: 1650.000 kg
1.Features
* Adopt domestic 5.5KW ATC water cooling spindle of large power
(Option:Italy 9.0KW HSD air cooling spindle)
* Japan Yaskawa Servo motor.
* Unique Auto Tool Changer system .
* Tool magazine standard capacity of 8 tools,(Optio:more than 8 tools).
3. Parameters:

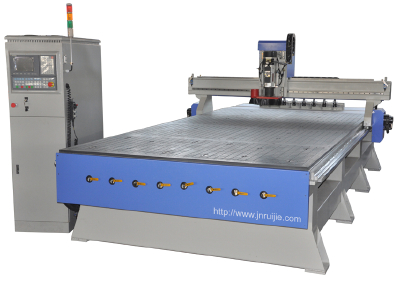

Model | RJ-2040 Linear ATC |
Working Area | 2000×4000mmx300mm |
Max Travelling Speed | 60000mm/min |
Max Engraving Speed | 25000mm/min |
Transmission | X,Y axis High Precision Rack Gear,Z Axis Imported Ball Screw |
X,Y,Z Guide Rails | HIWIN Square Rail |
Control System and Driver | DSP Control System |
Accuracy | 0.08/300mm |
Spindle motor | 5.5 KW Domestic water cooling |
Spindle speed | 6000-24000rpm |
Tool Magazine and Tools NO | Side Linear,8 tools |
Motor/Driver | Japan YASKAWA Servo System 850W |
Machine Power | 5.5KW |
Fixing Method | T-Slot aluminum &Vacuum absorption |
Working Environment | Temperature:0—45°C Humidity 5%—95% ( No condensate water) |
Supported Format and Software | PLT,DST,DXF,BMP, AI, Support AutoCAD,Corel Draw output directly |
