- Size: 2.5
- Place of Origin: China
- Brand Name: RUIJIE
- Model Number: 6090
- Weight: 260.000 kg

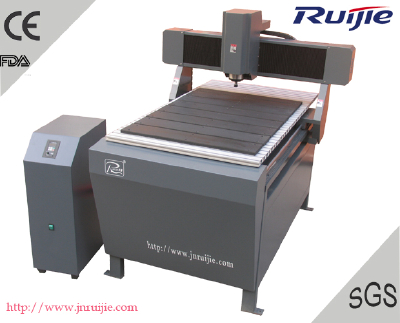

Features:
1.Welded structure by thick profiled steel , stabilized under high temperature, ensures mininum distortion,
2.Y axis with double motor driving ensure stable and smooth movement of the machine.
3.High precision rack gear transmission ensures fast speed and high accuracy.
4.Optimized mechanical and electrical design with well-selected brand parts minimized breakdown rate.
5.Spindle with high power enables power cutting strength.
6.Function of continuous working at stop point by power fealure.
7.Vacuum adsorption device is optional .
Applications:
Efficiency manufacturing of wooden products ,advertising billboard , acrylic cutting , letter mold forming and mass cutting .Also the machine can engraving iron ,brass, aluminum, plastic and wood boards and the non-metal material.
Product Description
Model | RJ6090C | RJ1212C | RJ1224C | RJ1325c |
working area | 600mm*900mm | 1200mm*1200mm | 1200mm*2400mm | 13oomm*2500mm |
spindle power | 1.5-2.2kw | 1.5-2.2kw | 1.5-2.2kw | 3.0kw |
sindle speed | 6000-24000rpm | 6000-24000rpm | 6000-24000rpm | 6000-24000rpm |
engraving spped | 12000mm/min | 12000mm/min | 12000mm/min | 12000mm/min |
working voltage | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
feeding height | 80mm | 80mm | 80mm | 80mm |
Control System | NC studio | NC studio | NC studio | NC studio |
